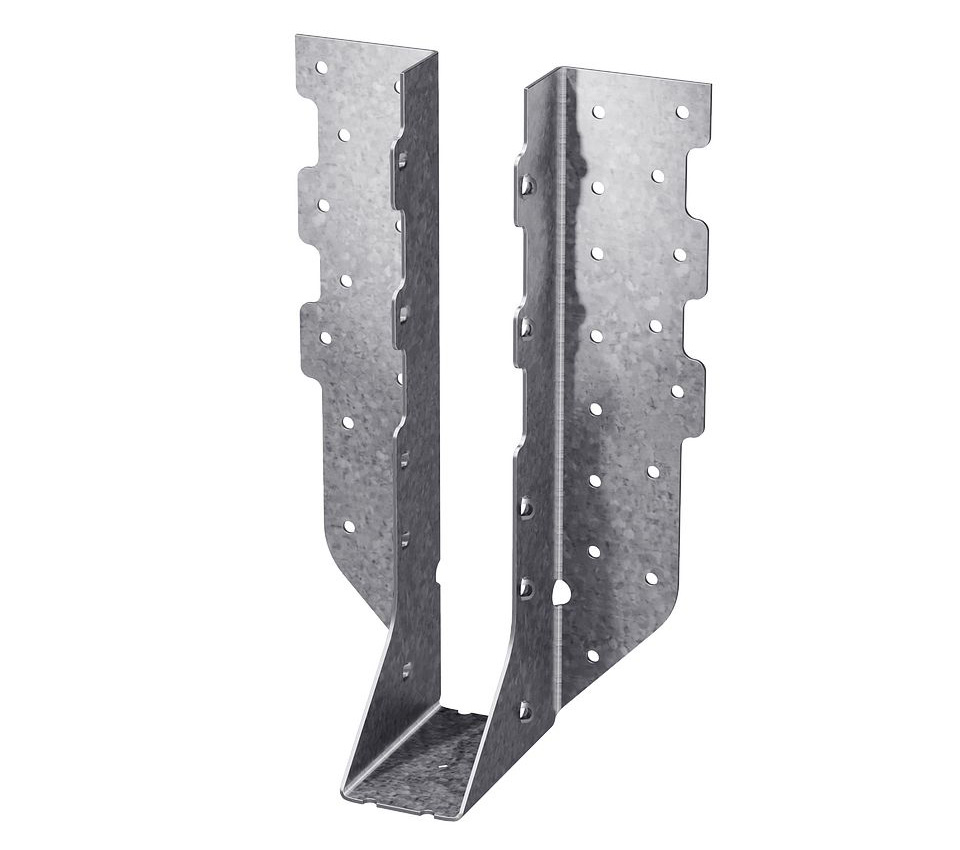

HUS Heavy U-Shaped Hanger with Double-Shear Nailing

The HUS is designed for applications where higher loads are needed. This hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This feature allows for fewer nails, faster installation and the use of all common nails for the same connection.

Please refer to the manufactures website for more in depth details on wood construction connectors; technical and installation notes

LUS/HUS/HHUS/HGUS Double-Shear Face-Mount Joist Hangers

Key Features

• Can be installed after the beam is secured in place
• Cannot be modifieds
• HUS-series hangers are tested, load rated and code compliant
• Galvanized

NOTES:

• Not designed for welded or nailer applications.
• Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
• Do not use double-shear hangers with I-joists.
