FRFP Flat Retrofit Foundation Plate

The FRFP is designed to connect the mudsill to the foundation and provide lateral load resistance. This flat retrofit foundation plate features a design that allows the designer to maintain prescriptive requirements. The FRFP can be used by filling the three round holes, or as an alternative, filling two optional triangle holes to allow designers increased loads and greater spacing.

Please refer to the manufactures website for more in depth details on wood construction connectors; technical and installation notes

URFP/FRFP Retrofit Foundation Plates

Key Features

• Made from durable galvanized steel for lasting and reliable use and to resist corrosion
• Optional fastening options provide design flexibility
• Increased loads for wind or earthquake loading
• Can accommodate up to a 1 1/2″ offset sill plate
• 8 gauge, Galvanized (G90) or hot-dip galvanized

NOTES:

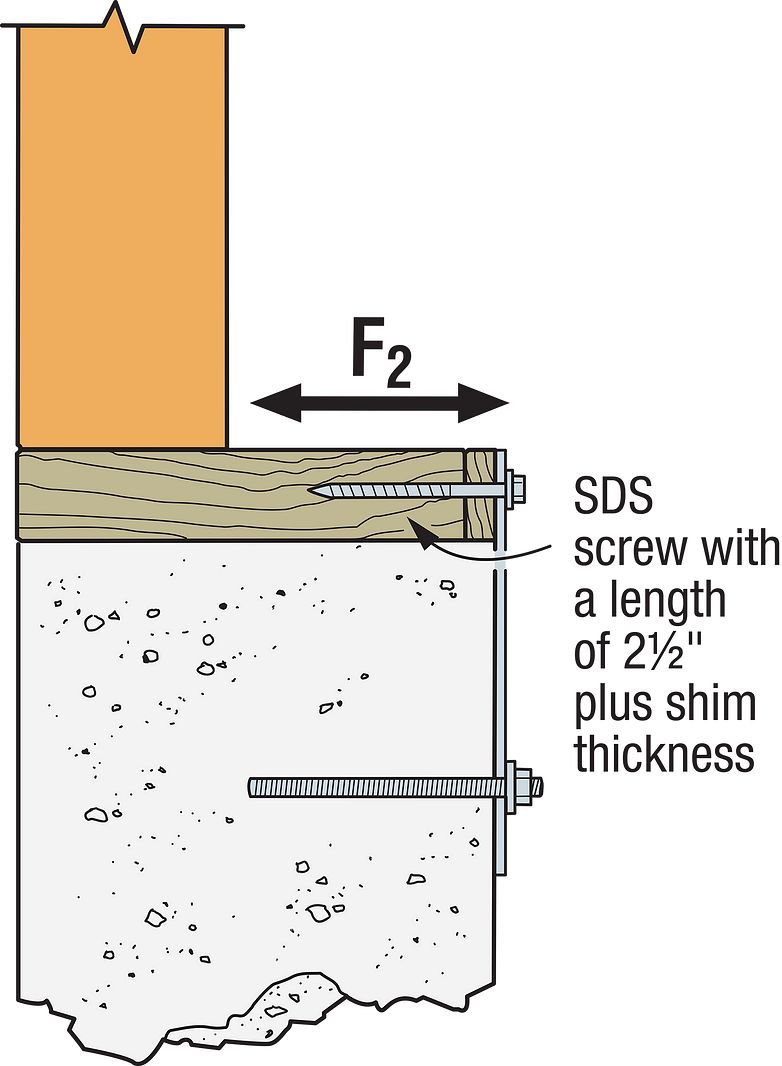

FRFP shall use a minimum Strong-Drive® SDS Heavy-Duty Connector screw length of 2 1/2" plus the shim thickness. Follow code requirements for predrilling. Fasteners are sold separately.
