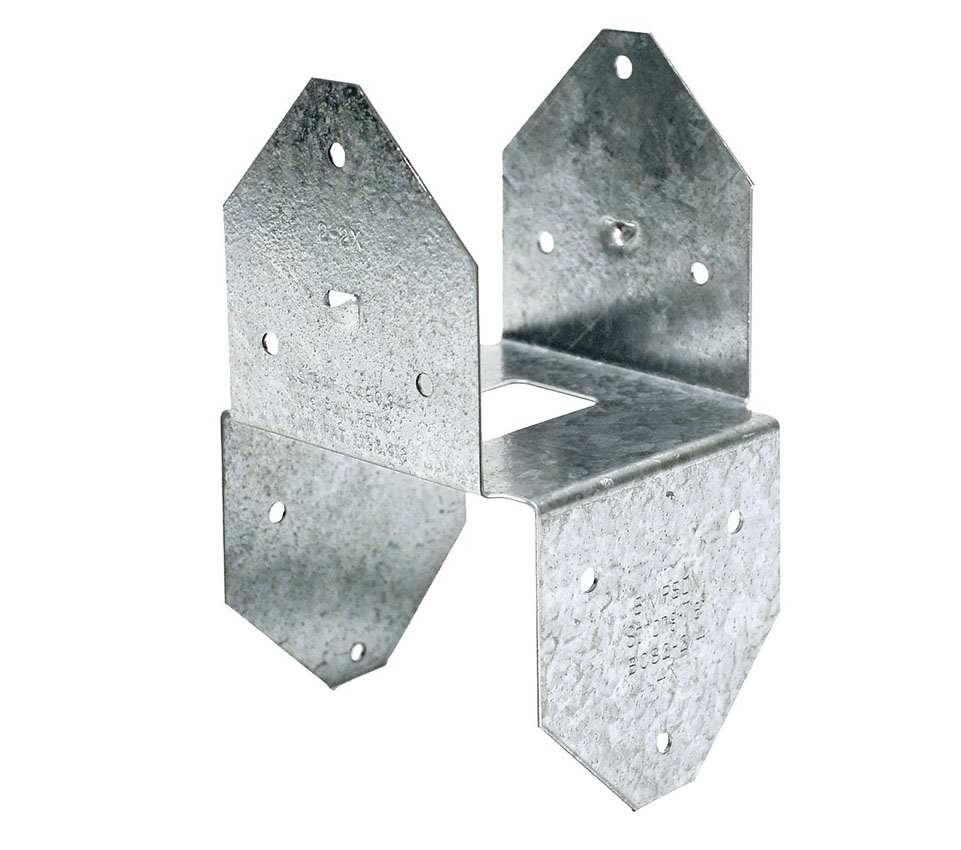

BCS Post Cap with Double-Shear Nailing

The BCS is designed to connect a multi-ply member beam to a post. The dimensions of this post cap accommodate the narrower width of multiple 2x members on top of the post. The BCS provides both lateral and uplift support and features double-shear nailing that distributes the load through two points for optimal strength.

Please refer to the manufactures website for more in depth details on wood construction connectors; technical and installation notes

BC/BCS Post Caps

Key Features

• Opposing flanges provide increased lateral resistance
• Double-shear nailing for optimal strength
• Sized specifically for multi-2x widths
• 18 gauge, Galvanized, ZMAX® coating, or stainless steel

NOTES:

Do not install bolts into pilot holes.
Install dome nails on beam; drive nails at an angle through the beam into the post below to achieve the table loads.
